| 產品型號 |
額定載荷 (t) |
W (mm) |
D (mm) |
d (mm) |
E (mm) |
P (mm) |
S (mm) |
O (mm) |
L(BW 型) (mm) |
自重(BW 型) (kg) |

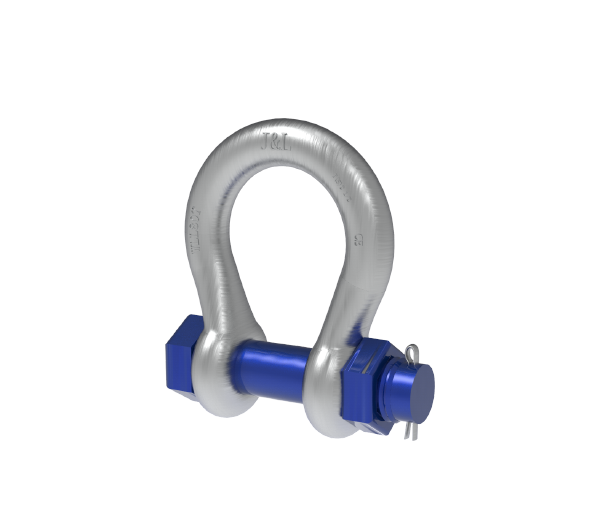

| T-BW2-3/8 | 2 | 17 | 12 | 9.5 | 23 | 9.5 | 36.5 | 26 | 52.5 | 0.13 |
| T-BW2.5-7/16 | 2.5 | 19 | 14 | 11 | 27 | 11 | 43 | 29.5 | 62 | 0.21 |
| T-BW3.25-1/2 | 3.25 | 20.5 | 16 | 13 | 30 | 13 | 48 | 33 | 70.5 | 0.3 |
| T-BW5-5/8 | 5 | 27 | 20 | 16 | 38 | 17.5 | 60.5 | 43 | 88 | 0.64 |
| T-BW7-3/4 | 7 | 32 | 22 | 19 | 46 | 20.5 | 71.5 | 51 | 102.5 | 1.09 |
| T-BW9.5-7/8 | 9.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 84 | 58 | 121 | 1.7 |
| T-BW12.5-1 | 12.5 | 43 | 30 | 25.5 | 60.5 | 27 | 95 | 68.5 | 139 | 2.5 |
| T-BW15-1 1/8 | 15 | 46 | 33 | 29.5 | 68.5 | 32 | 108 | 74 | 154 | 3.79 |
| T-BW18-1 1/4 | 18 | 51.5 | 36 | 33 | 76 | 35 | 119 | 82.5 | 170.5 | 4.89 |
| T-BW21-1 3/8 | 21 | 57 | 39 | 36 | 84 | 38 | 133.5 | 92 | 186.5 | 7.04 |
| T-BW30-1 1/2 | 30 | 60.5 | 42 | 39 | 92 | 41 | 146 | 98.5 | 201 | 8.35 |
| T-BW40-1 3/4 | 40 | 73 | 52 | 47 | 106.5 | 57 | 178 | 127 | 244 | 13.72 |
| T-BW50-2 | 50 | 82.5 | 60 | 53 | 122 | 61 | 197 | 146 | 275 | 20.33 |
| T-BW80-2 1/2 | 80 | 105 | 72 | 69 | 144.5 | 79.5 | 267 | 184 | 346 | 40.92 |
| 產品型號 |
額定載荷 (t) |
W (mm) |
D (mm) |
d (mm) |
E (mm) |
P (mm) |
S (mm) |
O (mm) |
L(BX 型) (mm) |
自重(BX 型) (kg) |
| T-BX2-3/8 | 2 | 17 | 12 | 9.5 | 23 | 9.5 | 36.5 | 26 | 54 | 0.13 |
| T-BX2.5-7/16 | 2.5 | 19 | 14 | 11 | 27 | 11 | 43 | 29.5 | 62 | 0.22 |
| T-BX3.25-1/2 | 3.25 | 20.5 | 16 | 13 | 30 | 13 | 48 | 33 | 71.5 | 0.31 |
| T-BX5-5/8 | 5 | 27 | 20 | 16 | 38 | 17.5 | 60.5 | 43 | 89 | 0.67 |
| T-BX7-3/4 | 7 | 32 | 22 | 19 | 46 | 20.5 | 71.5 | 51 | 105 | 1.14 |
| T-BX9.5-7/8 | 9.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 84 | 58 | 121 | 1.76 |
| T-BX12.5-1 | 12.5 | 43 | 30 | 25.5 | 60.5 | 27 | 95 | 68.5 | 136.5 | 2.58 |
| T-BX15-1 1/8 | 15 | 46 | 33 | 29.5 | 68.5 | 32 | 108 | 74 | 150.5 | 3.96 |
| T-BX18-1 1/4 | 18 | 51.5 | 36 | 33 | 76 | 35 | 119 | 82.5 | 166.5 | 5.06 |
| T-BX21-1 3/8 | 21 | 57 | 39 | 36 | 84 | 38 | 133.5 | 92 | 181 | 7.29 |
| T-BX30-1 1/2 | 30 | 60.5 | 42 | 39 | 92 | 41 | 146 | 98.5 | 196.5 | 8.75 |
| T-BX40-1 3/4 | 40 | 73 | 52 | 47 | 106.5 | 57 | 178 | 127 | 239 | 14.22 |
| T-BX50-2 | 50 | 82.5 | 60 | 53 | 122 | 61 | 197 | 146 | 269 | 21 |
| T-BX80-2 1/2 | 80 | 105 | 72 | 69 | 144.5 | 79.5 | 267 | 184 | 344 | 42.12 |
| T-BX110-3 | 110 | 127 | 85 | 76 | 165 | 92 | 330 | 200 | 401 | 74.8 |
| T-BX140-3 1/2 | 140 | 133.5 | 95 | 92 | 203 | 104.5 | 371.5 | 228.5 | 450 | 123.6 |
| T-BX175-4 | 175 | 140 | 110 | 104 | 228.5 | 116 | 368 | 254 | 500 | 165.9 |
